Suxxesion 90.ES

Published January 21, 2015 | By suxxesion
suxxesion_eTechnical Specifications
  • + Lifting capacity: 9.000 kg
  • + Concrete Tubings for wall lining of drilled rail road tunnel
  • + 6 Elements per circle Width per circle 1.400 mm Outside diameter 6.200 mm
  • + Dead weight: 1.600 kg
  • + Installed pump power: 2.2 kW

Vacuum lifting: Suxxesion 90.ES

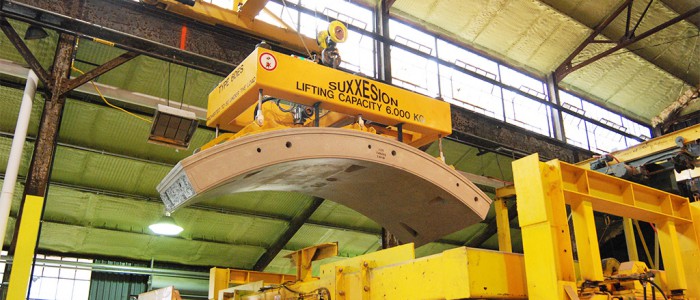

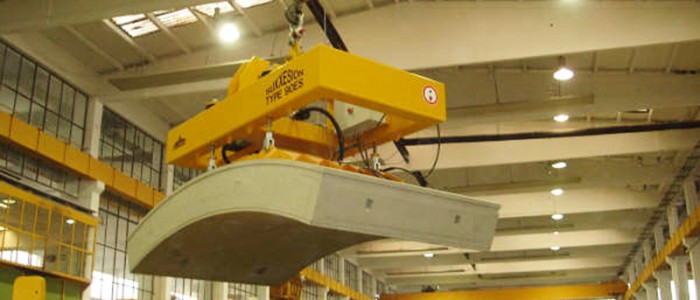

Suxxesion type 90 ES vacuum lifting device to unmould tunnel lining elements for HSL train tunnel Schluchtern in Germany. Device supplied with another Suxxesion type 90 ES however equipped with suction pads to lift the element from the inside radius. For this job we supplied to the concrete lining plant from Max Bogl in Neumarkt also a stationary turning in stallation 100 ERVH 180 degr. For this job we also supplied the erector system in the TBM from Wirth Erkelenz Germany
