Suxxesion 300.EDHP

suxxesion_eTechnical Specifications
  • + Lifting capacity 30.000 kg
  • + Dead weight of the equipment 5.200 kg
  • + Total installed power 13.2 kW

Vacuum lifting: Suxxesion 300.EDHP

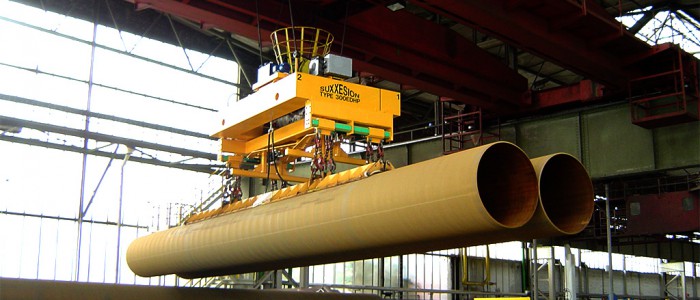

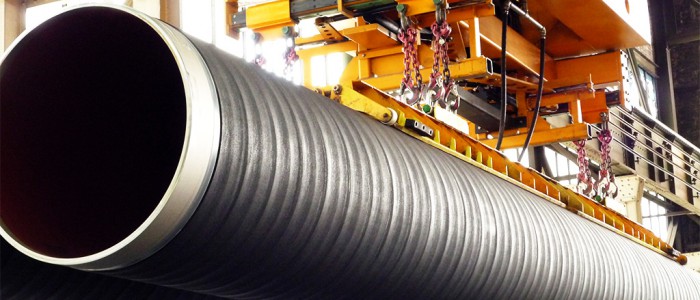

Suxxesion type 300EDHP in use at the coating factory of MPC in Mülheim. This installation is in use ever since 2004 and has handled millions of tons of pipe. The device is suspended from a overhead travelling crane and operated from the crane cabin through Siemens S7 and profibus connections. Maximal 2 pipes can be handled. The C-C distance can be adjusted under load by means of a hydraulic adjusting system.
