Suxxesion 300.TE180

  • Lifting and turning capacity 30.000kg
  • Max size of product (to lift and turn) 7.500 x 3.000 x 3.000 mm
  • Height (incl. largest suction pads) 3.6000 mm
  • Pump power 2x 5.5 kW mm
  • Hydraulic power 5.5 kW
  • Dead weight: aprox 6.000 kg

Vacuum lifting: Suxxesion 300.TE180

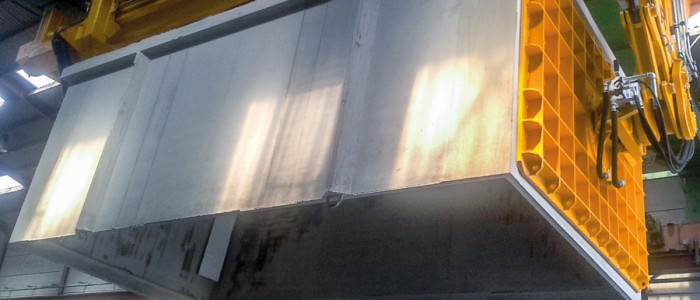

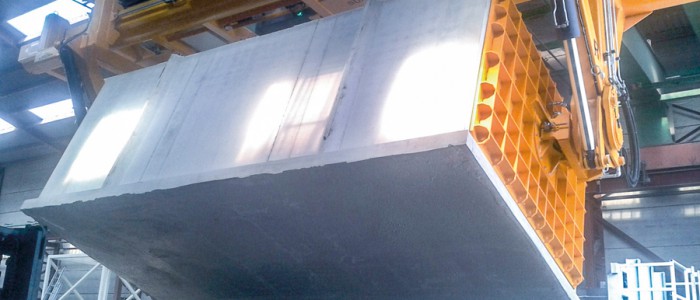

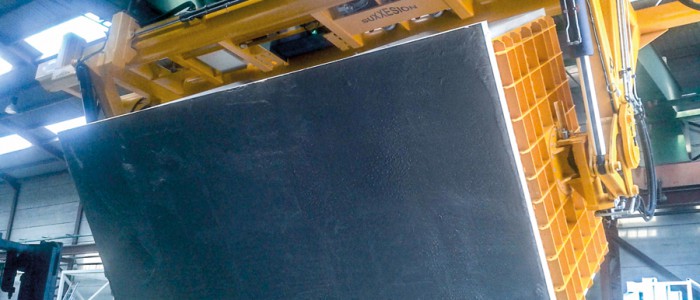

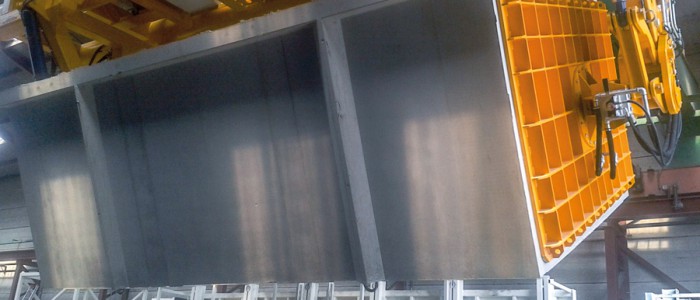

Designed to unmold and turn prefabricated basements and underground watertanks. By handling with vacuum the fresh molded concrete can be lifted after only 8 hours curing time. By applying smooth vacuum handling a lot of time and money is saved. The steel reinforcements in the concrete can be lighter due to the fact that the lifting force is divided over the surface under the suction pads instead of peak forces around lifting points attached to the steel reinforcements.
