Suxxesion 320.HS

Published January 13, 2015 | By suxxesion

suxxesion_eTechnical Specifications
  • + Max lifting capacity: 32.000kg suitable to lift 2 pipes at a time
  • + Dead weight of integrated part 3.200kg
  • + Hydraulic feed 80l/min at 200bar
  • + Power consumption ca 8 kW

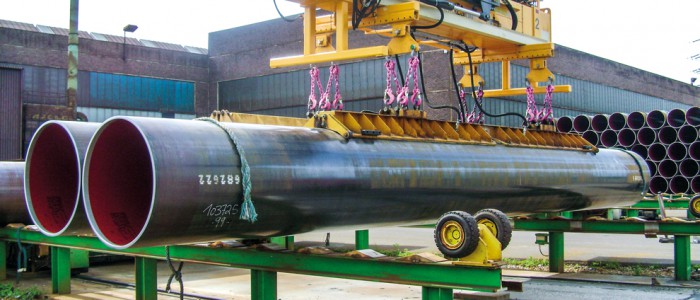

Vacuum lifting: Suxxesion 320.HS

The device has two individual vacuum systems for each suction pad. In case one pump fails, both systems can be connected to each other to finish the operation. The power to drive the pumps is taken from the stacker as well as the electric power for the controls and electrical components on the vacuum lifting system.
